Chapter 9

Testing

9.1  Embedding Tests in the Program Source

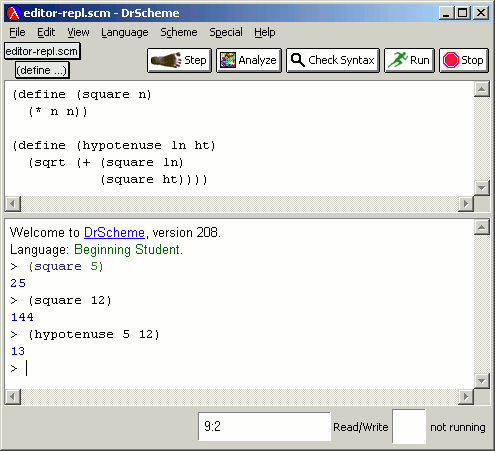

DrScheme makes it easy to cleanly encapsulate program test cases. For instance, consider the same program as before:

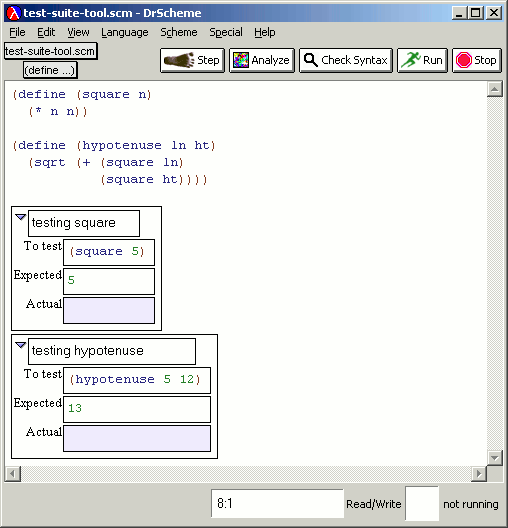

Because the REPL clears on each Run, it becomes tedious to repeatedly type tests in the REPL. The programmer can instead embed tests in the program source using Special | Insert Test Case. Each test can have a descriptive label followed by the test expression and the expected answer. These last two boxes can contain arbitrary Scheme code:

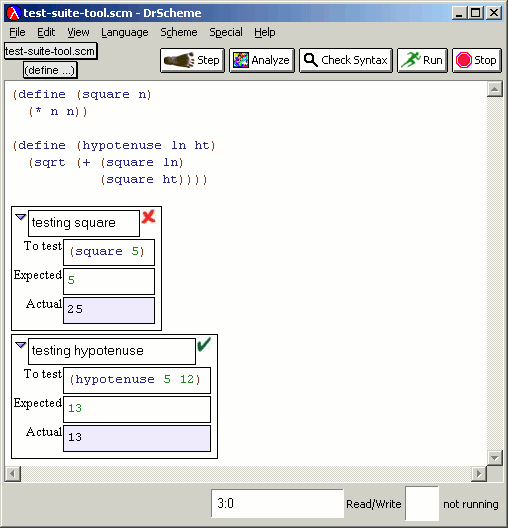

Clicking Run flags the correctness of each test:

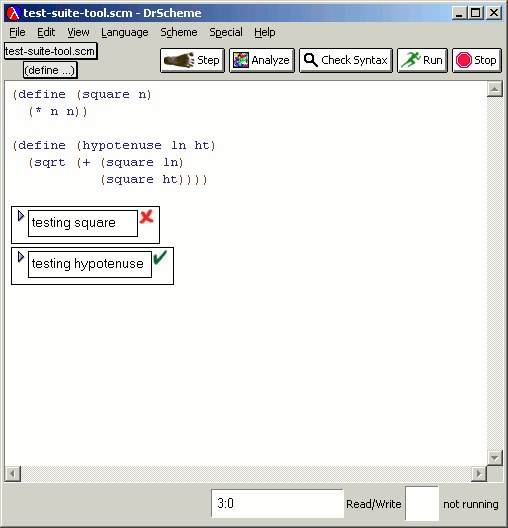

The full test can consume a good deal of screen space, but the programmer can always collapse a test by clicking on the triangle, leaving just the descriptive label and an indication of whether the test passed or failed:

9.2  Code Coverage

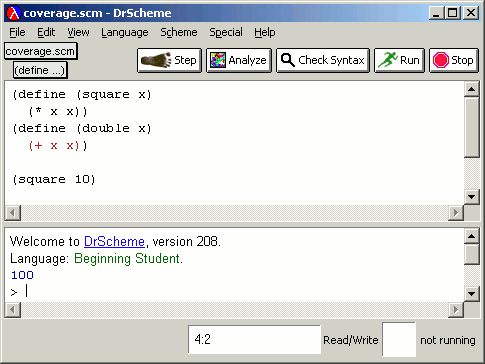

In the student language levels, DrScheme will automatically indicate expression coverage of programs. This is a useful baseline for students and instructors to determine whether a program has been tested adequately. When an expression has not been exercised, DrScheme highlights it in red, leaving the rest of the code in black:

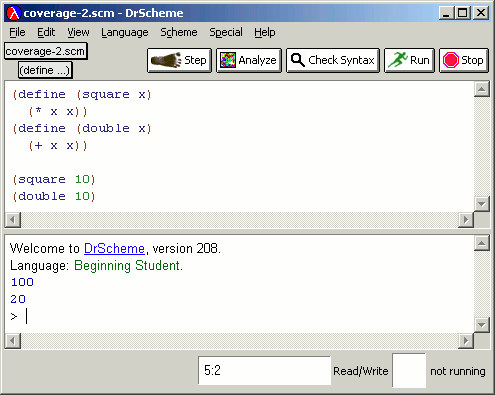

If, however, all the expressions have been tested, the editor reverts to full code coloring:

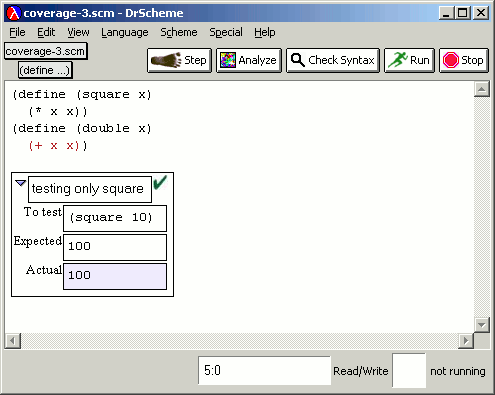

The coverage presentation does consider tests in embedded test cases. Thus, if a test only exercises square, then DrScheme presents the program text in black, highlighting the unexercised body of double:
